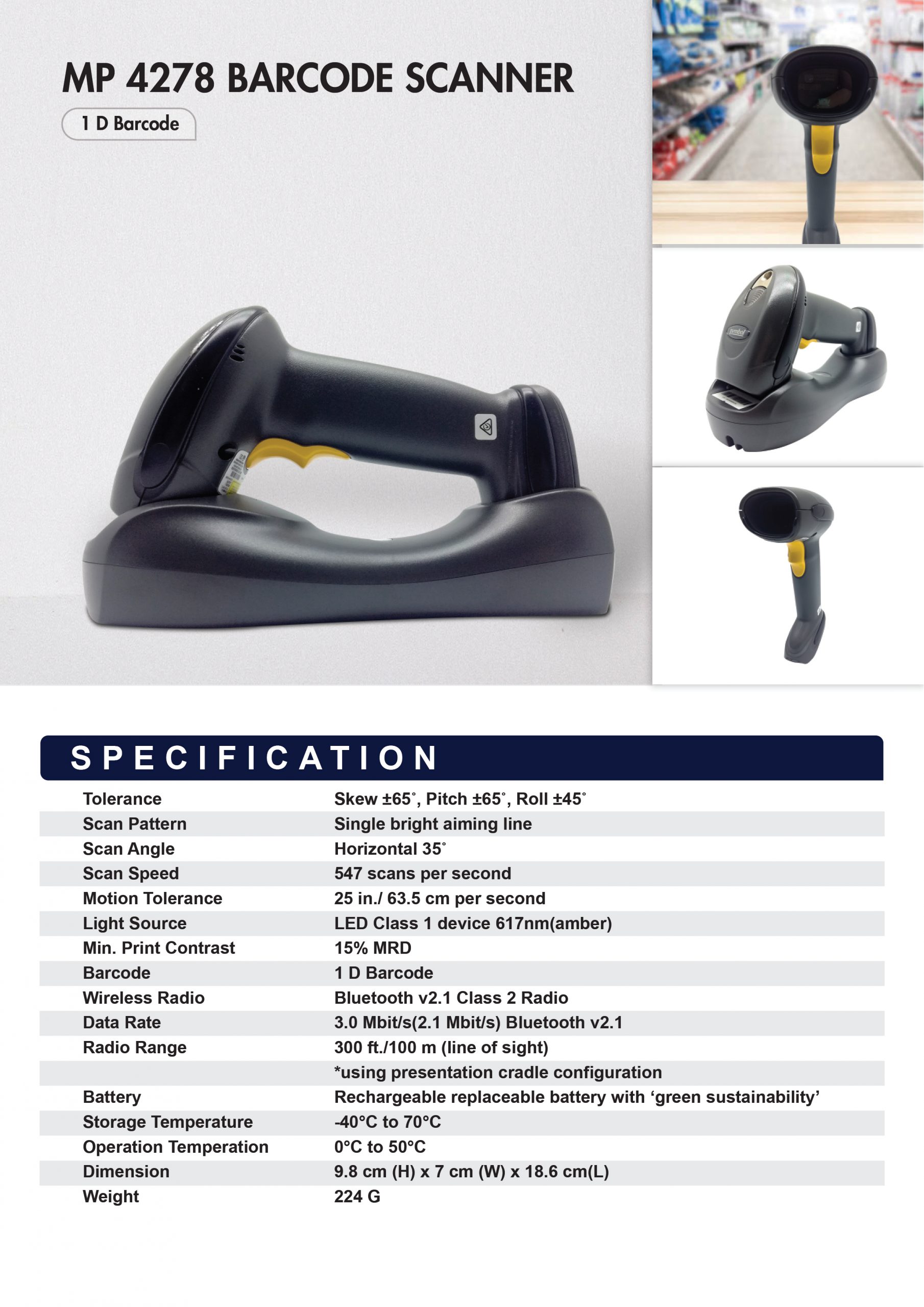

| Tolerance |
Skew ±65˚, Pitch ±65˚, Roll ±45˚ |
| Scan Pattern |
Single bright aiming line |
| Scan Angle |
Horizontal 35˚ |
| Scan Speed |
547 scans per second |
| Motion Tolerance |
25 in./ 63.5 cm per second |
| Light Source |
LED Class 1 device 617nm(amber) |
| Min. Print Contrast |
15% MRD |
| Barcode |
1 D Barcode |
| Wireless Radio |
Bluetooth v2.1 Class 2 Radio |
| Data Rate |
3.0 Mbit/s(2.1 Mbit/s) Bluetooth v2.1 |
| Radio Range |
300 ft./100 m (line of sight) *using presentation cradle configuration |
| Dimensions |
9.8 cm (H) x 7 cm (W) x 18.6 cm(L) |
| Weight |
224 grams |
| Battery |
Rechargeable replaceable battery with ‘green sustainability’ |
